SIMPLY CAPABLE
What Makes it a P9 Performance?
- Bosch Performance Sport motor provides up to 65 Nm of torque and 300% support, max speed up to 45 km/h
- 1x9-speed Shimano Alivio groupset with trigger shifter
Quick Haul Highlights
- Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack
- Fits riders 160 - 195 cm, and also riders 145 - 180 cm when equipped with a shorter, 350 mm seatpost
- Lots of available kid- and cargo-carrying accessories—easily create your perfect setup
- Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier
- Shimano hydraulic disc brakes for reliable stopping power—even when heavily loaded and riding fast
- Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg Maximum Gross Vehicle Weight
| SPEEDS |
1 x 9 |
| WEIGHT |
23 kg |
| GEAR INCHES |
2.45 - 7.57 m |
| FRAME SIZES |
One size |
| DISTANCE (SEATPOST TO HANDLEBAR) |
60 - 64 cm |
| DISTANCE (SADDLE TO PEDAL) |
68 - 110 cm |
| SUGGESTED RIDER HEIGHT |
160 - 195 cm |
| MAX GROSS VEHICLE WEIGHT |
150 kg |
| MAX RIDER WEIGHT |
120 kg |

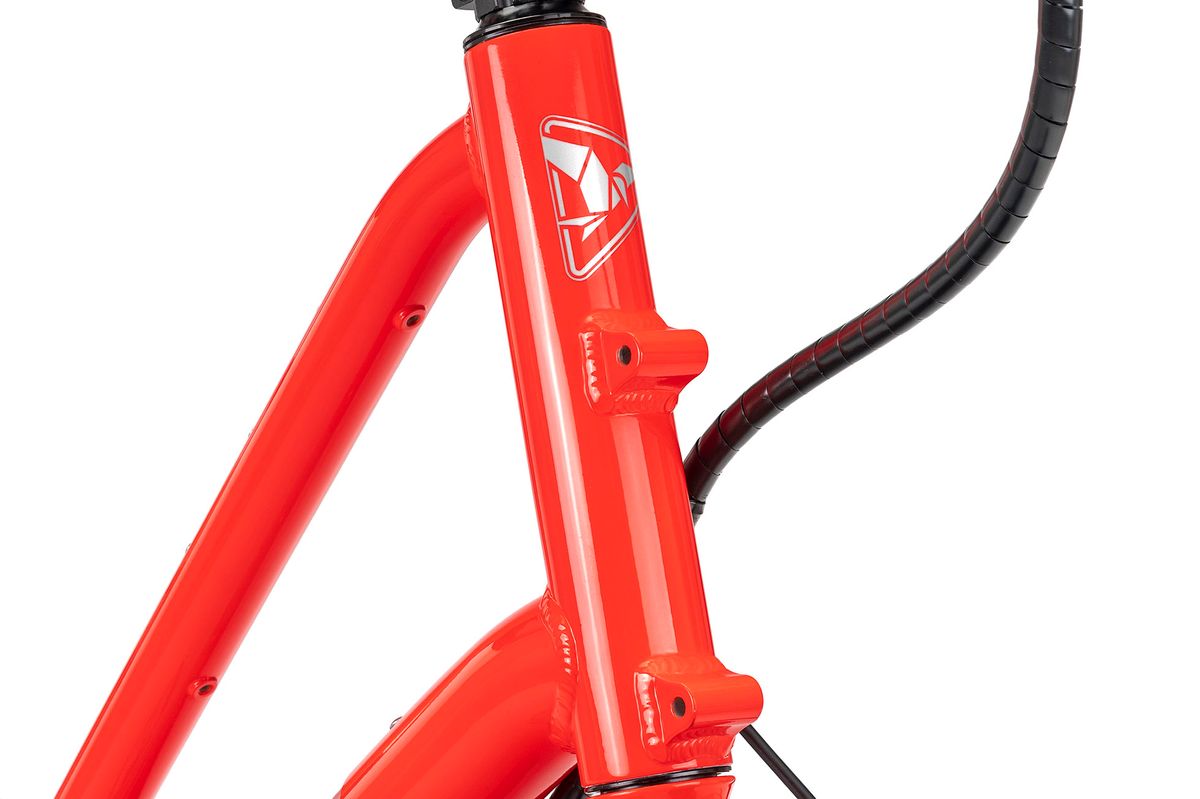

| FRAME |
Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg |
| FORK |
Cargo, steel, EFBE approved: 150 kg |

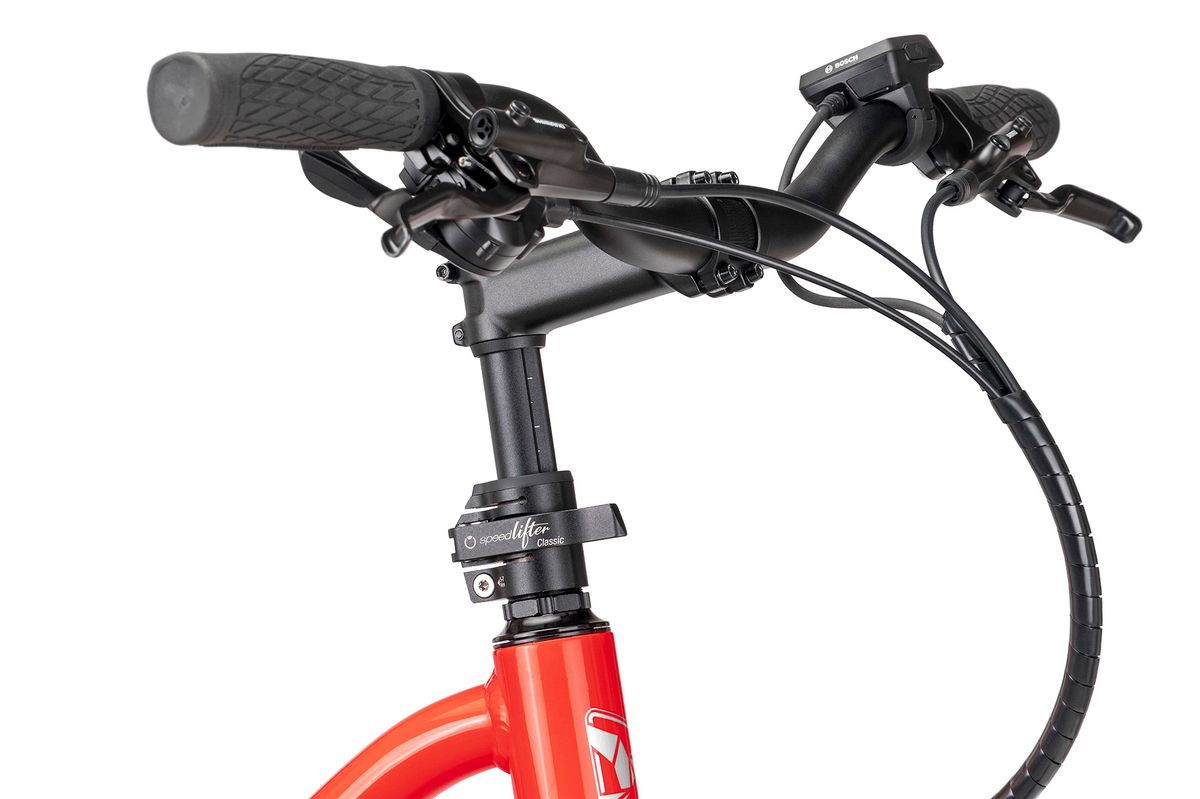

| STEM |
Speedlifter, 150 mm extension, 3D Forged stem, 31.8 |
| HEADSET |
TH, cartridge bearings |
| HANDLEBAR |
Low riser, 31.8, 6061-AL |
| GRIPS/BAR TAPE |
Velo ergonomic, lock-on |
| SADDLE |
Velo Comfort |
| SEATPOST |
31.6 mm, 6061-AL, micro-adjust clamp |
| SEATPOST CLAMP |
Tern Collar |
| FRONT BRAKE |
Shimano, hydraulic disc 180 mm |
| REAR BRAKE |
Shimano, hydraulic disc 160 mm |
| BRAKE LEVERS |
Shimano, hydraulic disc |
| BRAKE CABLE & HOUSING |
Shimano, hydraulic disc |
WHEELS
| FRONT HUB |
Shimano disc |
| REAR HUB |
Shimano disc |
| SPOKES AND NIPPLES |
Stainless steel |
| RIMS |
Kinetix Comp, for disc |
| TIRES |
Schwalbe Big Apple, 55-406, puncture protection, Reflex |
TRANSMISSION
| SHIFTER(S) |
Shimano Alivio, 1 x 9 spd, trigger |

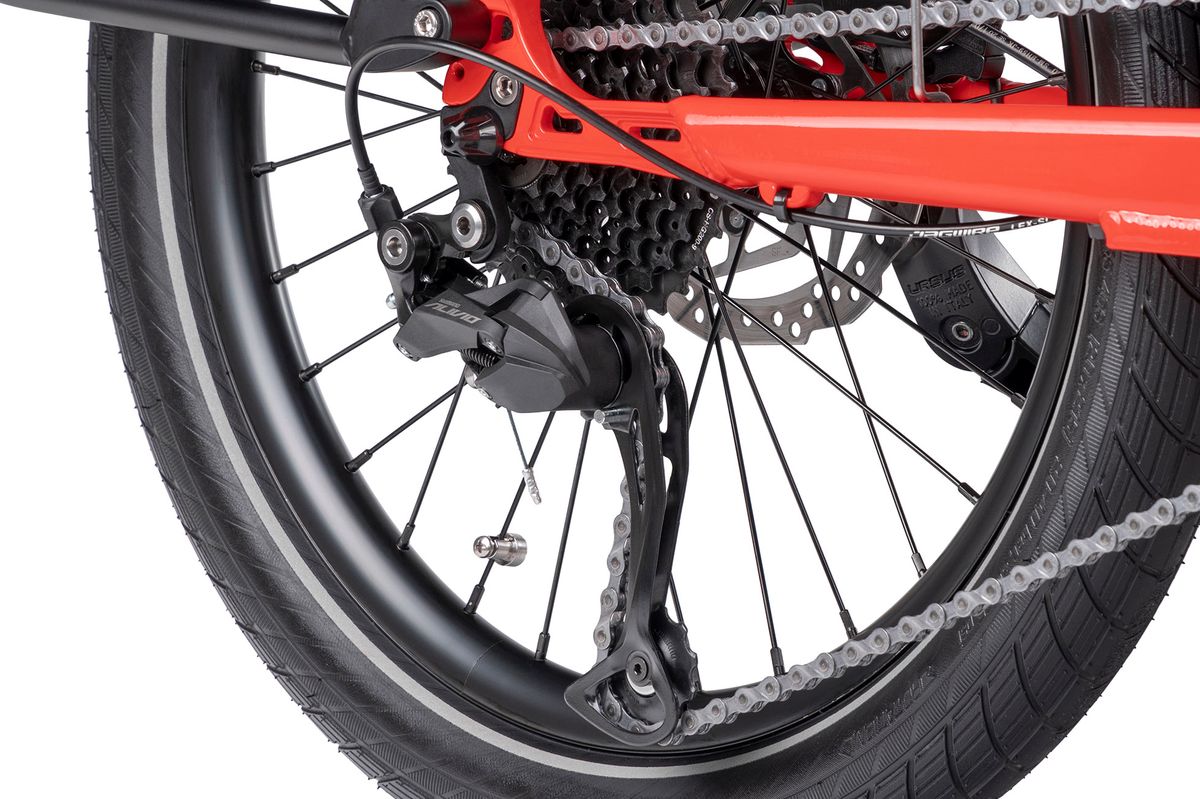

| REAR DERAILLEUR |
Shimano Alivio Shadow |
| CRANKSET |
Tern custom, forged 6061-AL crankarm |
| CASSETTE/FREEWHEEL |
Shimano 11-34T, 9 spd |
| BOTTOM BRACKET |
Motor integrated |
| CHAIN |
KMC for eBike, 9 spd |
| PEDALS |
Urban with non-slip surface |
| SHIFTER CABLE & HOUSING |
SP |

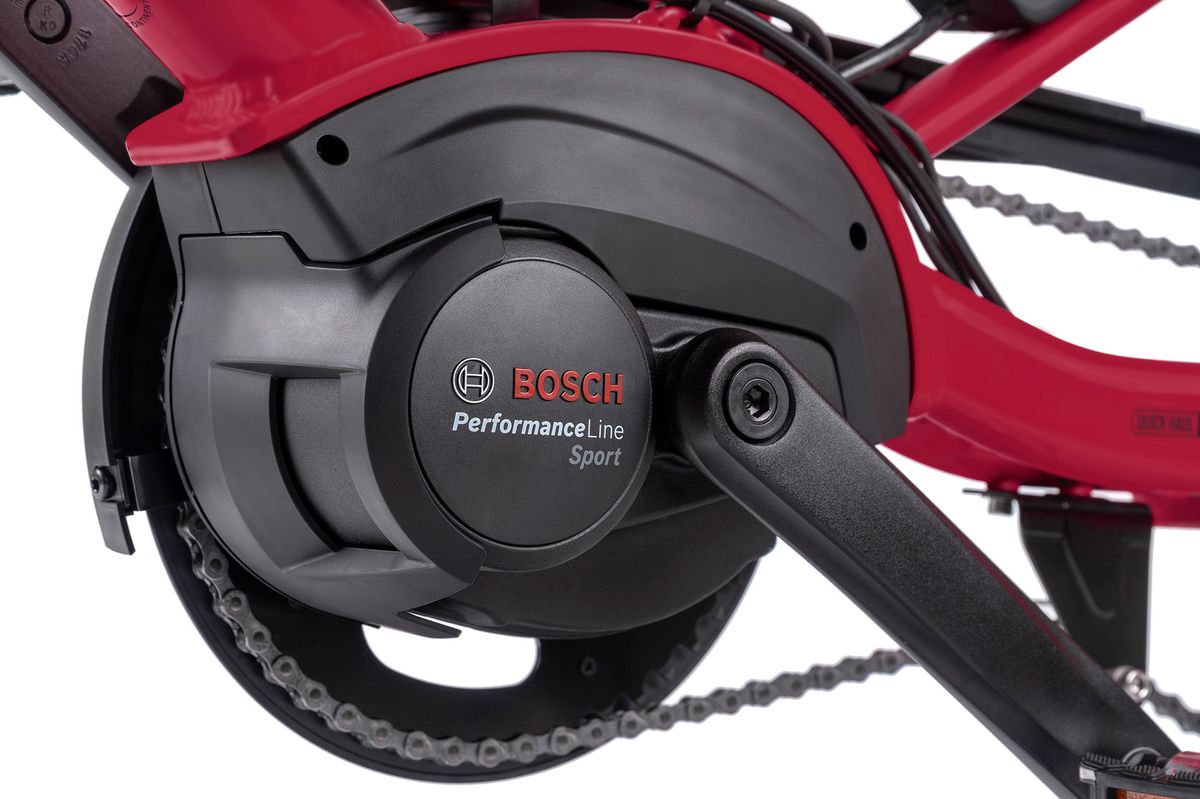

| MOTOR |
Bosch Performance Sport, 300% Assist, 65 Nm Torque, max speed 45 km/h |

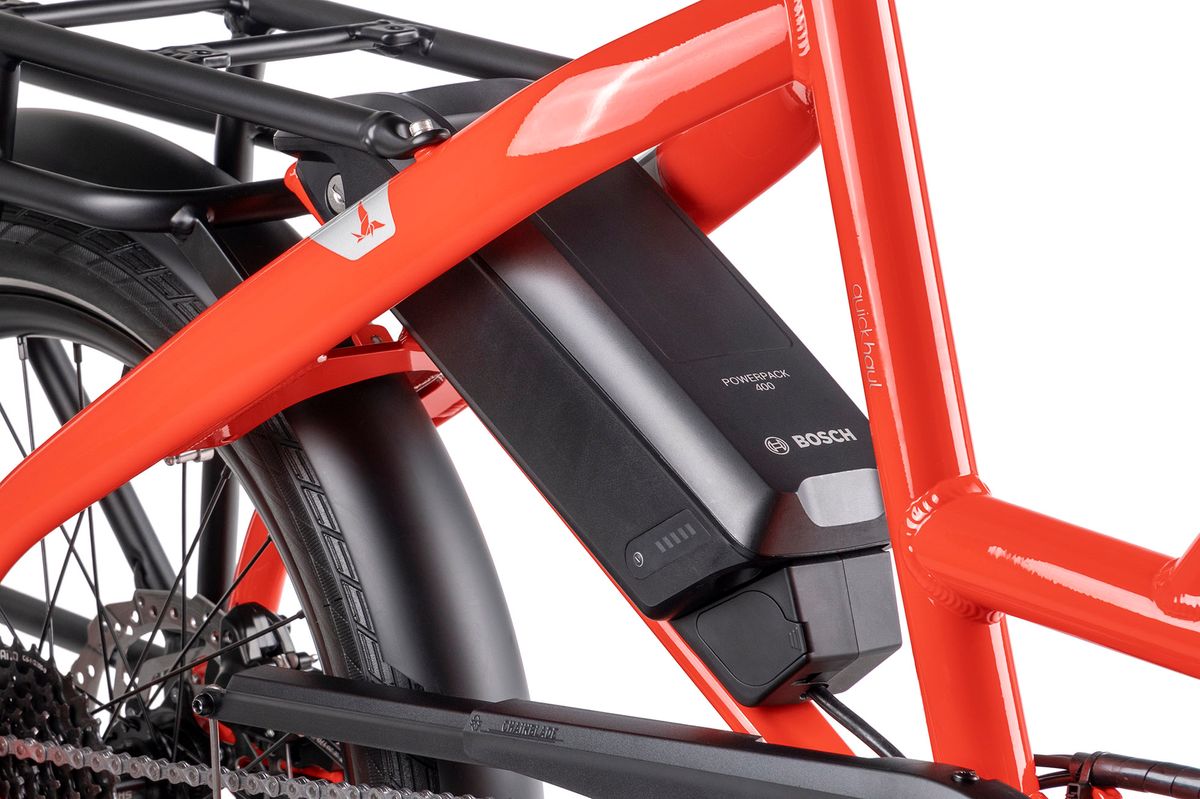

| BATTERY |
Bosch PowerPack 400Wh |

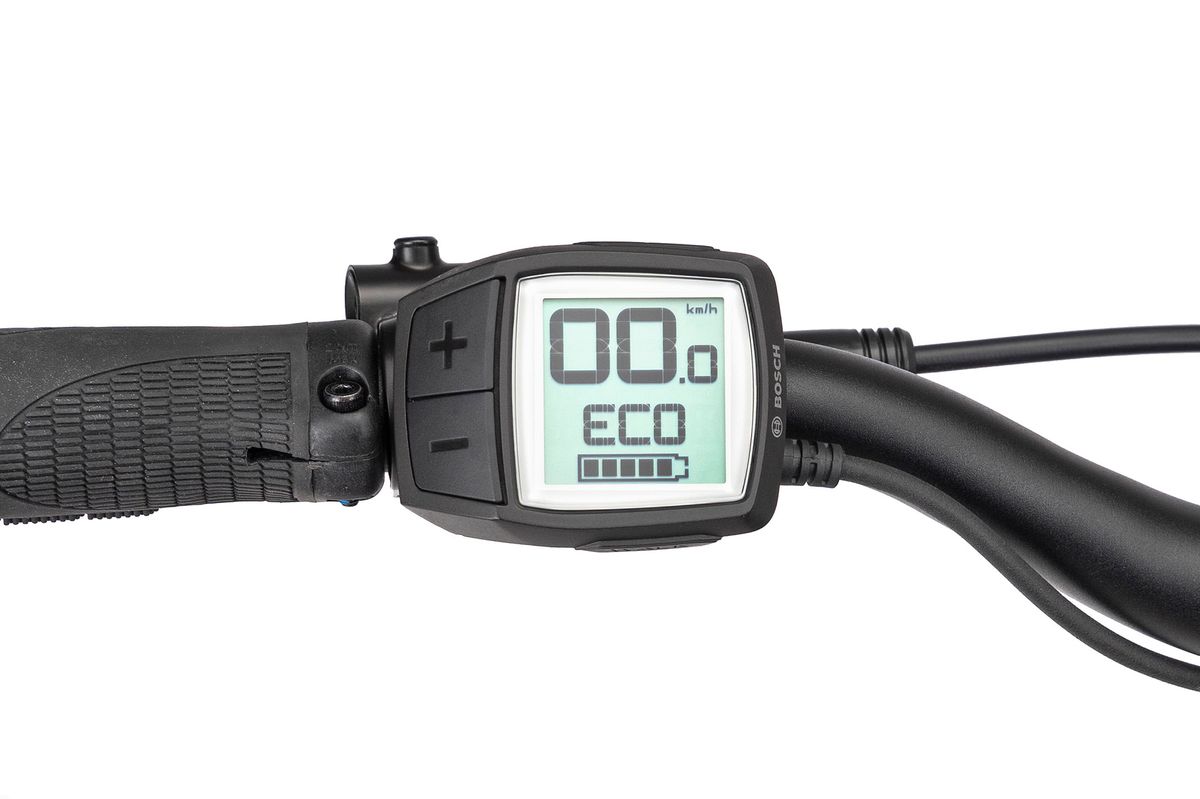

| DISPLAY |
Bosch Purion |
| RANGE |
400 Wh: 51 - 100 km |
| CHARGER |
Compact Charger, 100-240V, 2A |
| BELL |
Aluminum |
| CHAINGUARD |
SKS Chainblade |
| KICKSTAND |
Pletscher design, rear mount |
| LUGGAGE SOCKET |
Combo Mount |
| FRONT LIGHT |
Herrmans, 120 lumens |
| REAR LIGHT |
Herrmans |
| FENDERS |
Chromeplastic, stainless hardware |
| RACK(S) |
Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity |
*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
